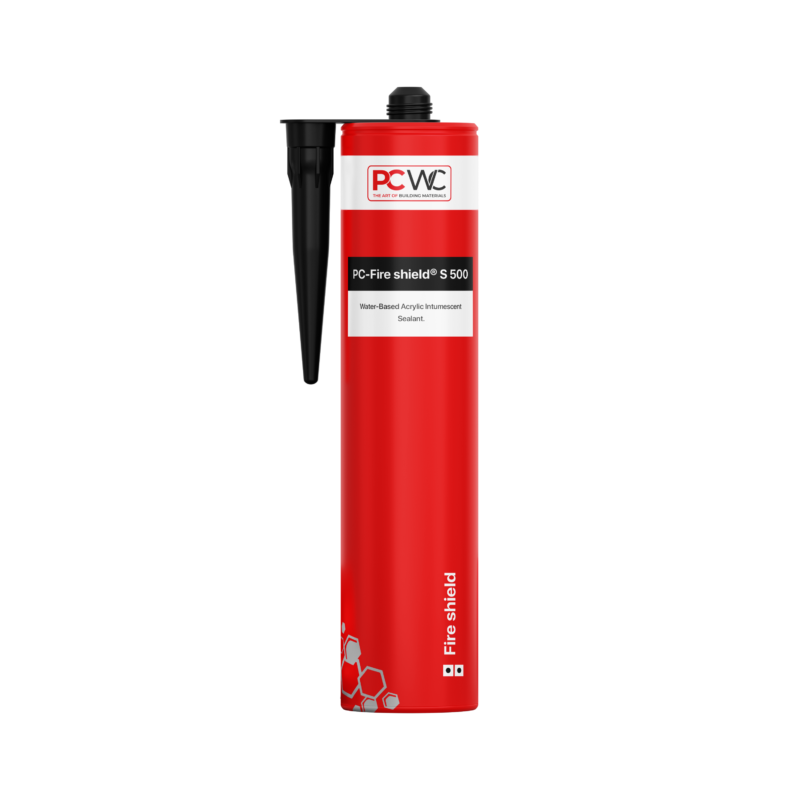

PC-Fire shield® S 500

Water-Based Acrylic Intumescent Sealant

PC-Fire shield® S500 is a cost-effective, water-based acrylic intumescent sealant used to maintain fire resistance in compartment walls and floors. It expands in case of fire to create a char barrier, preventing the passage of flames and hot gases. The sealant is suitable for building service penetrations and linear joints, with independent certification for use with various penetrating services. It requires only a 10 mm depth for small-diameter pipes and can be applied in linear gaps up to 40 mm wide.

FEATURE

  • Independently Tested & Certified.
  • Water-Based.
  • Solvent-Free.
  • Easy Installation.
  • Flexible and Durable.
  • Non-Hazardous.
  • Economical Solution.
  • 3rd Party Audited & Accredited.
  • International Approvals.
  • Easily Accessible through Local Representatives.
  • Continuous testing and certification program for expanding application range.
  • ISO 9001 Quality Assurance.

APPLICATION AREA

PC-Fire shield® S500 is comprehensively tested and independently certified in a wide range of applications, from linear gap seals in concrete walls and floors to service penetrations seals in concrete walls and floors and gypsum drywalls.

A. Linear Gap Seals
240 Mins from 15mm to 40mm wide vertical joints in concrete walls and 180 Mins for up to 30mm wide horizontal joints in concrete walls. 120 Mins up to 25mm wide joints in concrete floors.

B. Penetration Seals
120 Mins fire resistance (Insulation & Integrity) when used to seal a wide range of services penetrating concrete walls and floors and gypsum drywalls. Single electrical cables, cable bundles, insulated steel pipes up to 152mm diameter and copper pipes up to 108mm diameter, loaded cable trays up to 450mm wide.

C. Plastic Pipes & Conduits
120 Mins fire resistance (Insulation & Integrity) when used to seal a range of PVC-U pipes and electrical conduits up to 160mm diameter x 6.2mm thick in conjunction with other.
